Step 1: Create the Device in the CCPro SmartPBX

Log into https://portal.pbx.ccprosolutions.uk

Go to Devices

Click on Add Device

Select Soft Phone from the drop down.

Enter a name for the device, and select the user to assign it to.
Leave all other fields untouched, and click Create Device

You should now see your device in the list, the icon is coloured red as it is not yet registered / provisioned.
You can go back into the settings above by clicking the spanner on the right.


Step 2: Configure Bria 4

These are the settings you will need for Bria 4:
UserID: The SIP Username value from the device you just created (click the spanner next to it)

Domain: The Realm value from the device you just created
Password: The SIP Password value form the device you just created (clicking into the field reveals the password)
Display Name: As Required

Authorization Name: The SIP Username value from the device you just created (click the spanner next to it)
Domain Proxy: uks.vocal-cloud.com
Dial Plan: Leave as default

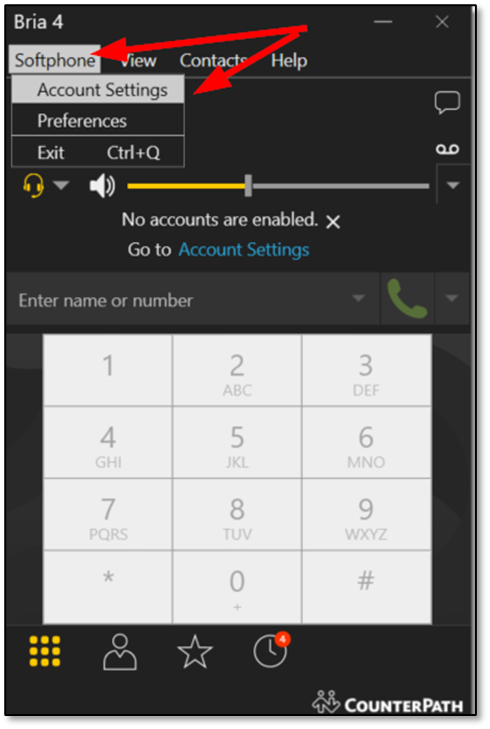

Open Bria 4 and go to Softphone > Account Settings

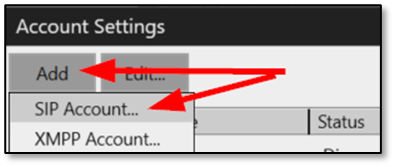

In account settings, click Add > SIP Account

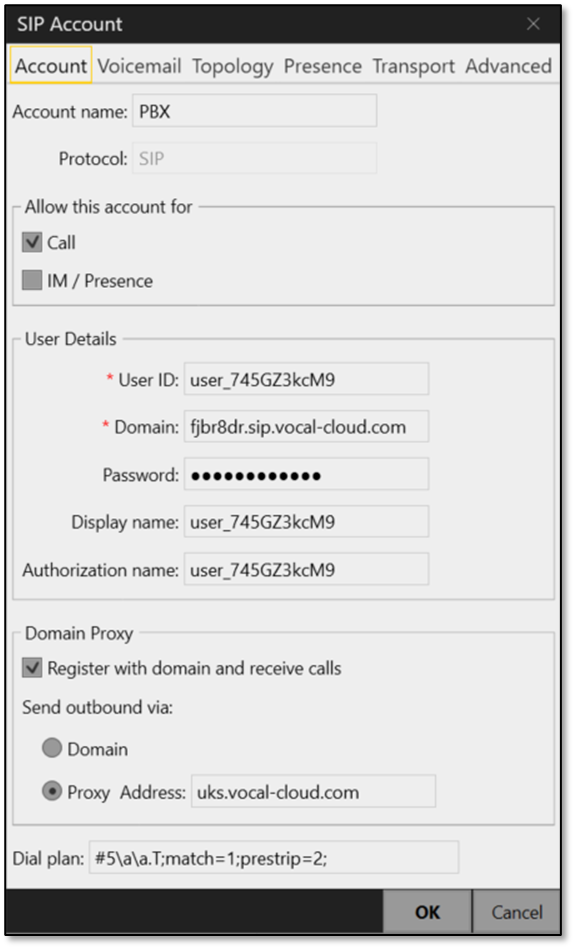

Using the settings as above, complete the settings screen so it looks similar to the below, and click OK

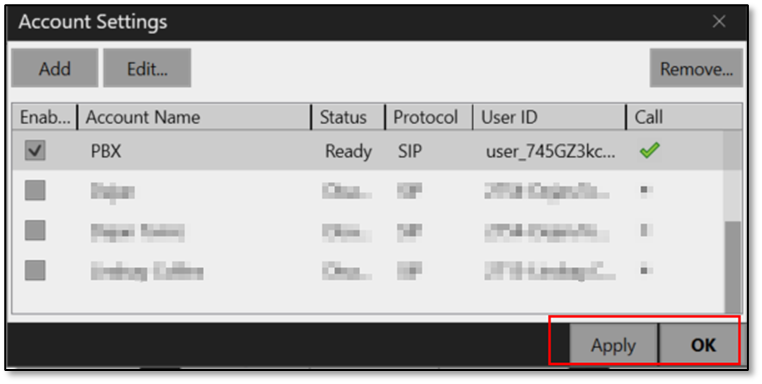

You should then see a green tick next to the account in the Account Settings screen.
Click Apply, then OK.

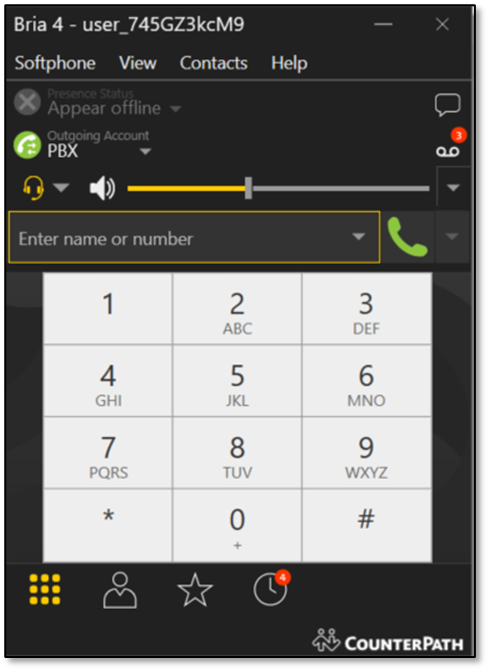

Once registered, Bria 4 should look like this.

You should be able to make inbound and outbound calls, and your device's icon should show green in the PBX device screen.
