Before You Start

You will need the following:

The exact model of your phone
The MAC address of the phone
The phone’s Admin password
 Access to a computer on the same network as the phone


Step 1: Create the Device in the CCPro SmartPBX

Log into https://portal.pbx.ccprosolutions.uk

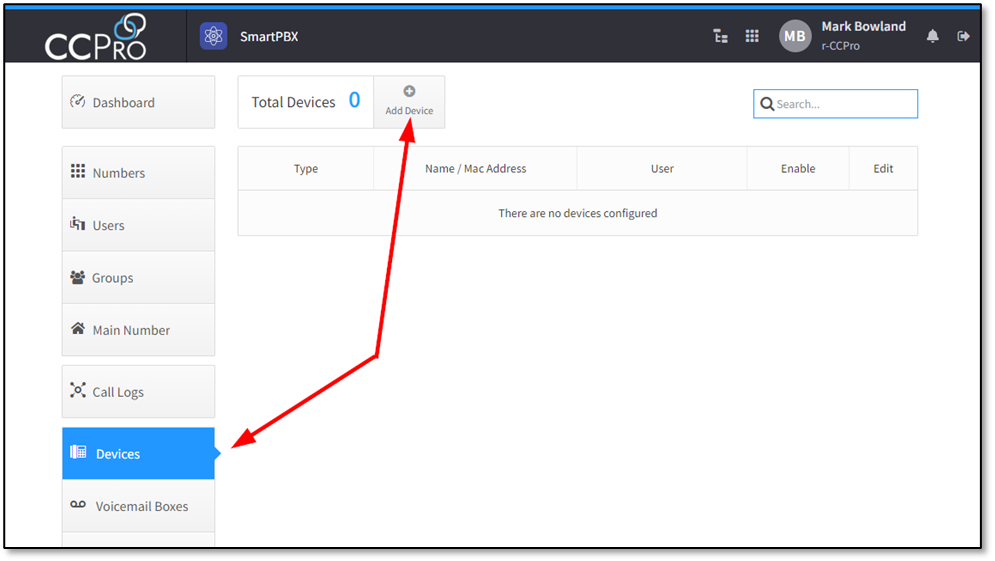

Go to Devices > Add Device

Graphical user interface, application

Description automatically generated

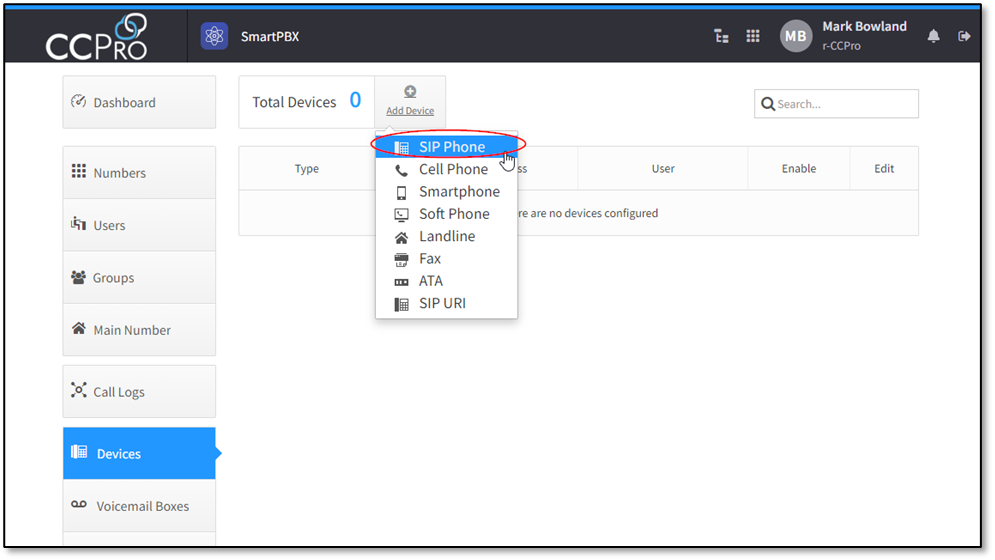

 Select SIP Phone

Graphical user interface, text

Description automatically generated

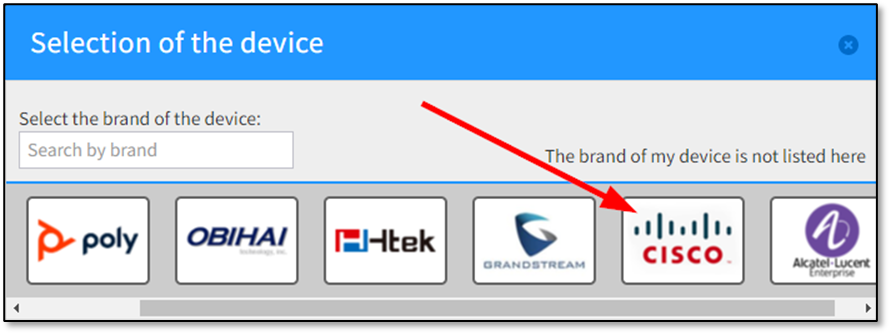

 Select Cisco from the brand list

Graphical user interface, text, application

Description automatically generated

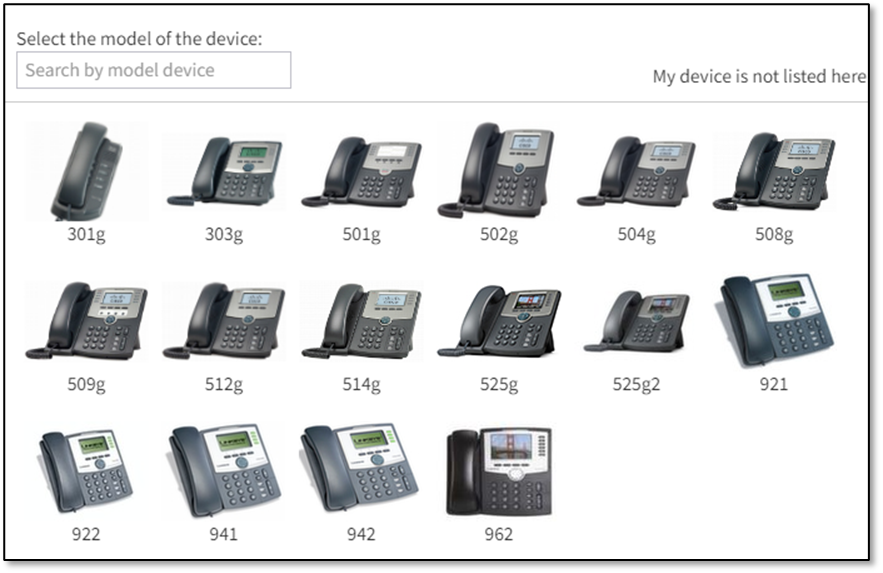

Pick the correct model from the list

Graphical user interface, application

Description automatically generated

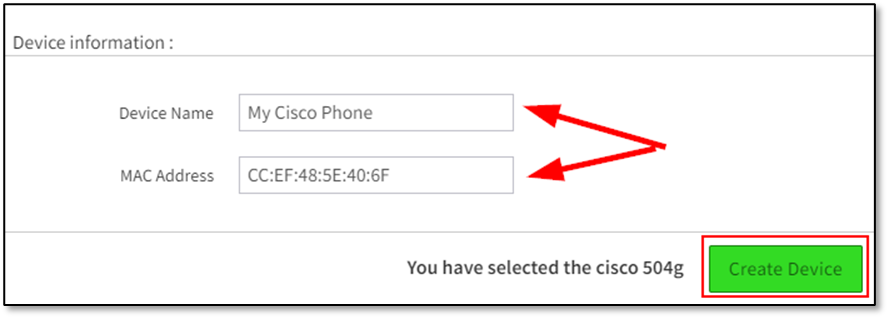

Enter a name for the device, and its MAC address, and click “Create Device”

Graphical user interface

Description automatically generated with low confidence

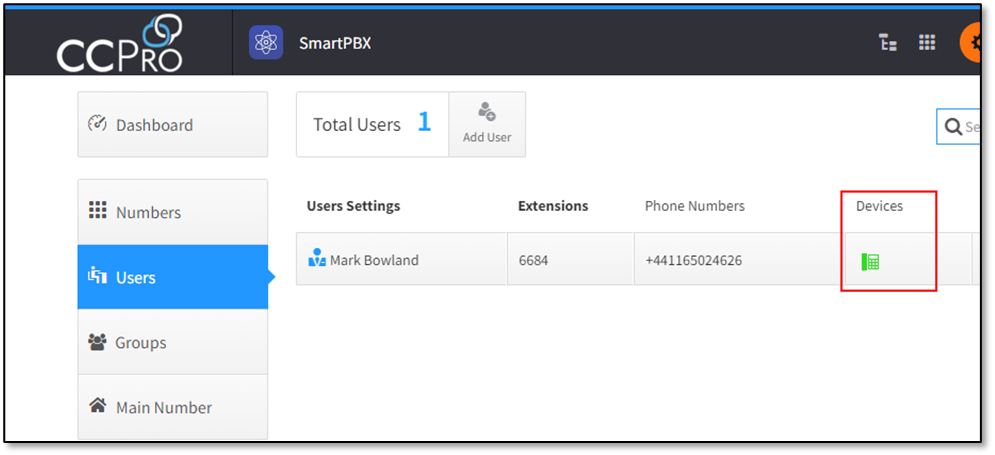

You will need to assign the device to a user, under Users > Devices
NOTE: Do not assign a user if the phone is to be used for hot desking

Graphical user interface, application, website

Description automatically generated

Once added, click on the Apps icon at the top of the page

Click on the Advanced Provisioner app

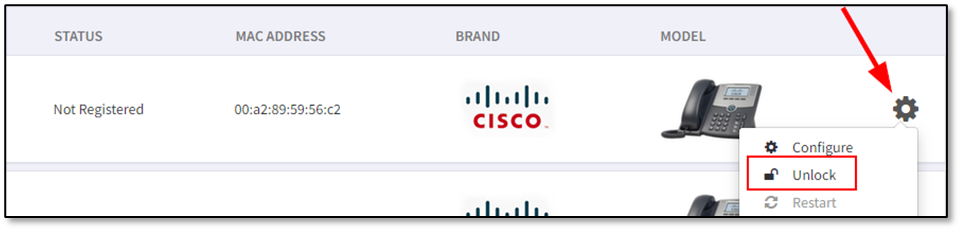

Locate your Cisco phone, click the cog next to it, and select Unlock to unlock provisioning for this device.


Step 2: Factory Reset the Phone

To Factory Reset a Cisco device:

Click on the Menu

  1. Select 14: Factory Reset
  2. Select OK at the Reset Warning, and the device will commence Factory Reset and Initialization.




Step 3: Obtain the Phone’s IP Address

In order to provision a Cisco phone, you will first need to get its IP address in order to access the phone's web interface.

To do so, click on the Menu Icon, which is shown in the photo. Then you will select “Network” which is typically “9.” The IP address should be the second line, for example: "IP: 10.10.9.88".


Step 4: Load the Phone’s Admin User Interface

On a computer on the same network as the phone, in your browser now, enter the device’s IP address.

You should see something like this:

Graphical user interface

Description automatically generated

Click on Advanced and then Admin Login

Graphical user interface

Description automatically generated

The username is usually “admin” and the default password is “2600”.
 If these do not work, contact the CCPro Support Team.

Graphical user interface, application

Description automatically generated


Step 6: Edit the Profile Rule URL

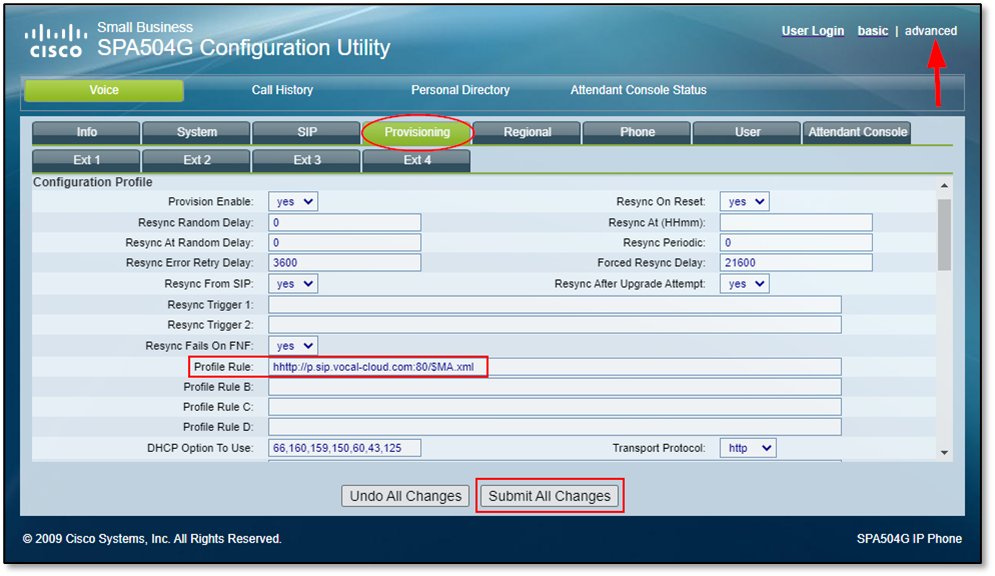

Click on Advanced tab and then the Provisioning Tab
 Change the Profile Rule field to this:

http://p.sip.vocal-cloud.com:80/$MA.xml

A screenshot of a computer

Description automatically generated

Then click “Submit All Changes”.

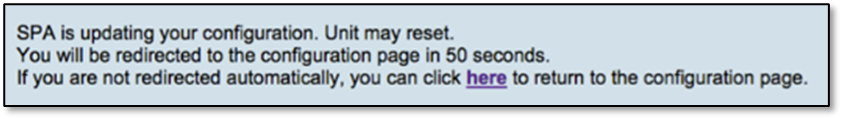

You should see this message, and the phone should reboot several times.
